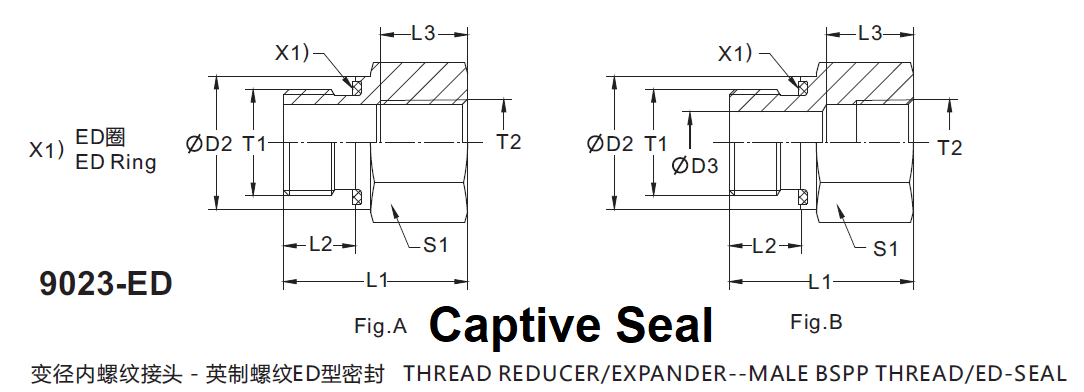

9023-ED
型号英制直螺纹尺寸工作压力Part Nr.BS STRAIGHT THRD.SIZES INFO.Wk Pres.T1T2D2D3L1L2L3S1Fig.Mpa9023-02-04-EDG1/8AG1/414431.0817.019B4
型号英制直螺纹尺寸工作压力Part Nr.BS STRAIGHT THRD.SIZES INFO.Wk Pres.T1T2D2D3L1L2L3S1Fig.Mpa9023-02-04-EDG1/8AG1/414431.0817.019B4
| 型号 | 英制直螺纹 | 尺寸 | 工作压力 | |||||||
| Part Nr. | BS STRAIGHT THRD. | SIZES INFO. | Wk Pres. | |||||||
| T1 | T2 | D2 | D3 | L1 | L2 | L3 | S1 | Fig. | Mpa | |
| 9023-02-04-ED | G1/8A | G1/4 | 14 | 4 | 31.0 | 8 | 17.0 | 19 | B | 40 |
| 9023-02-06-ED | G1/8A | G3/8 | 14 | 4 | 32.0 | 8 | 17.0 | 24 | B | 40 |
| 9023-04-02-ED | G1/4A | G1/8 | 19 | 5 | 29.0 | 12 | 12.0 | 19 | B | 40 |
| 9023-04-06-ED | G1/4A | G3/8 | 19 | 5 | 36.0 | 12 | 17.0 | 24 | B | 40 |
| 9023-04-08-ED | G1/4A | G1/2 | 19 | 5 | 40.0 | 12 | 20.0 | 30 | B | 40 |
| 9023-04-12-ED | G1/4A | G3/4 | 19 | 5 | 43.0 | 12 | 22.0 | 36 | B | 40 |
| 9023-06-02-ED | G3/8A | G1/8 | 22 | 22.5 | 12 | 8.0 | 22 | A | 40 | |
| 9023-06-04-ED | G3/8A | G1/4 | 22 | 8 | 36.0 | 12 | 17.0 | 22 | B | 40 |
| 9023-06-08-ED | G3/8A | G1/2 | 22 | 8 | 41.0 | 12 | 20.0 | 30 | B | 40 |
| 9023-06-12-ED | G3/8A | G3/4 | 22 | 8 | 44.0 | 12 | 22.0 | 36 | B | 31.5 |
| 9023-08-02-ED | G1/2A | G1/8 | 27 | 24.0 | 14 | 8.0 | 27 | A | 40 | |
| 9023-08-04-ED | G1/2A | G1/4 | 27 | 24.0 | 14 | 12.0 | 27 | A | 40 | |
| 9023-08-06-ED | G1/2A | G3/8 | 27 | 12 | 37.0 | 14 | 17.0 | 27 | B | 40 |
| 9023-08-12-ED | G1/2A | G3/4 | 27 | 12 | 46.0 | 14 | 22.0 | 36 | B | 31.5 |
| 9023-08-16-ED | G1/2A | G1 | 27 | 12 | 49.0 | 14 | 24.5 | 41 | B | 31.5 |
| 9023-08-20-ED | G1/2A | G11/4 | 27 | 10 | 53.0 | 14 | 26.5 | 55 | B | 31.5 |
| 9023-12-04-ED | G3/4A | G1/4 | 32 | 26.0 | 16 | 12.0 | 32 | A | 31.5 | |
| 9023-12-06-ED | G3/4A | G3/8 | 32 | 26.0 | 16 | 12.0 | 32 | A | 31.5 | |
| 9023-12-08-ED | G3/4A | G1/2 | 32 | 16 | 43.0 | 16 | 20.0 | 32 | B | 31.5 |
| 9023-12-16-ED | G3/4A | G1 | 32 | 16 | 51.0 | 16 | 24.5 | 41 | B | 31.5 |
| 9023-12-20-ED | G3/4A | G11/4 | 32 | 16 | 55.0 | 16 | 26.5 | 55 | B | 31.5 |
| 9023-12-24-ED | G3/4A | G11/2 | 32 | 16 | 57.0 | 16 | 28.5 | 60 | B | 25 |
| 9023-16-04-ED | G1A | G1/4 | 40 | 29.0 | 18 | 12.0 | 41 | A | 31.5 | |
| 9023-16-06-ED | G1A | G3/8 | 40 | 29.0 | 18 | 12.0 | 41 | A | 31.5 | |
| 9023-16-08-ED | G1A | G1/2 | 40 | 29.0 | 18 | 14.0 | 41 | A | 31.5 | |
| 9023-16-12-ED | G1A | G3/4 | 40 | 20 | 49.0 | 18 | 22.0 | 41 | B | 31.5 |
| 9023-16-20-ED | G1A | G11/4 | 40 | 20 | 57.0 | 18 | 26.5 | 55 | B | 31.5 |
| 9023-16-24-ED | G1A | G11/2 | 40 | 20 | 59.0 | 18 | 28.5 | 60 | B | 25 |
| 9023-20-08-ED | G11/4A | G1/2 | 50 | 32.0 | 20 | 14.0 | 50 | A | 31.5 | |
| 9023-20-12-ED | G11/4A | G3/4 | 50 | 32.0 | 20 | 16.0 | 50 | A | 31.5 | |
| 9023-20-16-ED | G11/4A | G1 | 50 | 25 | 52.0 | 20 | 24.5 | 50 | B | 31.5 |
| 9023-20-24-ED | G11/4A | G11/2 | 50 | 25 | 60.0 | 20 | 28.5 | 60 | B | 25 |
| 9023-24-08-ED | G11/2A | G1/2 | 55 | 36.0 | 22 | 14.0 | 55 | A | 25 | |
| 9023-24-12-ED | G11/2A | G3/4 | 55 | 36.0 | 22 | 16.0 | 55 | A | 25 | |
| 9023-24-16-ED | G11/2A | G1 | 55 | 36.0 | 22 | 18.0 | 55 | A | 25 | |
| 9023-24-20-ED | G11/2A | G11/4 | 55 | 32 | 58.0 | 22 | 26.5 | 55 | B | 25 |
| 9023-32-24-ED | G2A | G11/2 | 75 | 40 | 65.0 | 24 | 28.5 | 75 | B | 16 |
