9023
型号英制直螺纹尺寸工作压力Part Nr.BS STRAIGHT THRD.SIZES INFO.Wk Pres.T1T2D2D3L1L2L3S1Fig.Mpa9023-02-04G1/8AG1/41443181719B409023-02-06G1/
型号英制直螺纹尺寸工作压力Part Nr.BS STRAIGHT THRD.SIZES INFO.Wk Pres.T1T2D2D3L1L2L3S1Fig.Mpa9023-02-04G1/8AG1/41443181719B409023-02-06G1/
| 型号 | 英制直螺纹 | 尺寸 | 工作压力 | |||||||
| Part Nr. | BS STRAIGHT THRD. | SIZES INFO. | Wk Pres. | |||||||

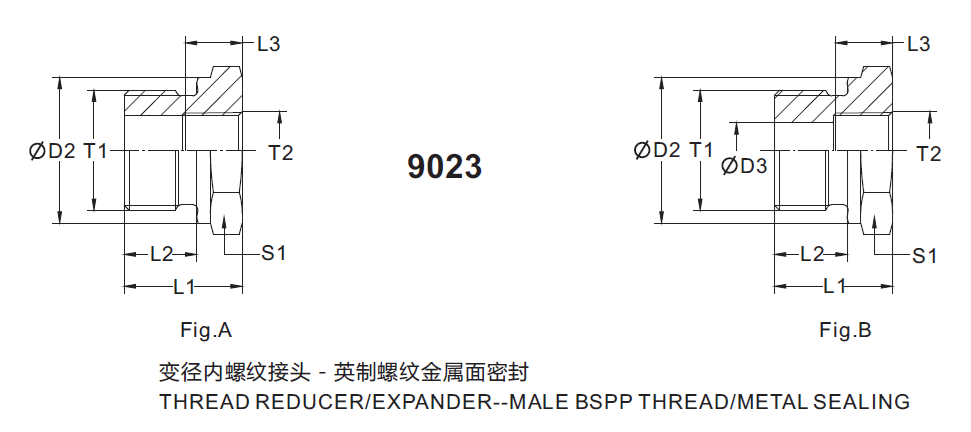

| T1 | T2 | D2 | D3 | L1 | L2 | L3 | S1 | Fig. | Mpa | |
| 9023-02-04 | G1/8A | G1/4 | 14 | 4 | 31 | 8 | 17 | 19 | B | 40 |
| 9023-02-06 | G1/8A | G3/8 | 14 | 4 | 32 | 8 | 17 | 24 | B | 40 |
| 9023-04-02 | G1/4A | G1/8 | 18 | 5 | 28 | 12 | 12 | 19 | B | 40 |
| 9023-04-06 | G1/4A | G3/8 | 18 | 5 | 36 | 12 | 17 | 24 | B | 40 |
| 9023-04-08 | G1/4A | G1/2 | 18 | 5 | 40 | 12 | 20 | 30 | B | 40 |
| 9023-04-12 | G1/4A | G3/4 | 18 | 5 | 43 | 12 | 22 | 36 | B | 31.5 |
| 9023-06-02 | G3/8A | G1/8 | 22 | 22.5 | 12 | 8 | 22 | A | 40 | |
| 9023-06-04 | G3/8A | G1/4 | 22 | 8 | 36 | 12 | 17 | 22 | B | 40 |
| 9023-06-08 | G3/8A | G1/2 | 22 | 8 | 41 | 12 | 20 | 27 | B | 40 |
| 9023-06-12 | G3/8A | G3/4 | 22 | 8 | 44 | 12 | 22 | 36 | B | 31.5 |
| 9023-08-02 | G1/2A | G1/8 | 26 | 24 | 14 | 8 | 27 | A | 40 | |
| 9023-08-04 | G1/2A | G1/4 | 26 | 24.65 | 14 | 12 | 27 | A | 31.5 | |
| 9023-08-06 | G1/2A | G3/8 | 26 | 12 | 36 | 14 | 17 | 27 | B | 31.5 |
| 9023-08-12 | G1/2A | G3/4 | 26 | 12 | 46 | 14 | 22 | 36 | B | 31.5 |
| 9023-08-16 | G1/2A | G1 | 26 | 12 | 49 | 14 | 24.5 | 41 | B | 31.5 |
| 9023-08-20 | G1/2A | G11/4 | 26 | 10 | 53 | 14 | 26.5 | 55 | B | 16 |
| 9023-12-04 | G3/4A | G1/4 | 32 | 26 | 16 | 12 | 32 | A | 31.5 | |
| 9023-12-06 | G3/4A | G3/8 | 32 | 28 | 16 | 12 | 32 | A | 31.5 | |
| 9023-12-08 | G3/4A | G1/2 | 32 | 16 | 41 | 16 | 20 | 32 | B | 31.5 |
| 9023-12-16 | G3/4A | G1 | 32 | 16 | 51 | 16 | 24.5 | 41 | B | 31.5 |
| 9023-12-20 | G3/4A | G11/4 | 32 | 16 | 55 | 16 | 26.5 | 55 | B | 16 |
| 9023-12-24 | G3/4A | G11/2 | 32 | 16 | 57 | 16 | 28.5 | 60 | B | 16 |
| 9023-16-04 | G1A | G1/4 | 39 | 29 | 18 | 12 | 41 | A | 31.5 | |
| 9023-16-06 | G1A | G3/8 | 39 | 29 | 18 | 12 | 41 | A | 31.5 | |
| 9023-16-08 | G1A | G1/2 | 39 | 29 | 18 | 14 | 41 | A | 31.5 | |
| 9023-16-12 | G1A | G3/4 | 39 | 20 | 47 | 18 | 22 | 41 | B | 31.5 |
| 9023-16-20 | G1A | G11/4 | 39 | 20 | 57 | 18 | 26.5 | 55 | B | 16 |
| 9023-16-24 | G1A | G11/2 | 39 | 20 | 59 | 18 | 28.5 | 60 | B | 16 |
| 9023-20-08 | G11/4A | G1/2 | 49 | 32 | 20 | 14 | 50 | A | 16 | |
| 9023-20-12 | G11/4A | G3/4 | 49 | 32 | 20 | 16 | 50 | A | 16 | |
| 9023-20-16 | G11/4A | G1 | 49 | 25 | 52 | 20 | 24.5 | 50 | B | 16 |
| 9023-20-24 | G11/4A | G11/2 | 49 | 25 | 60 | 20 | 28.5 | 60 | B | 16 |
| 9023-24-08 | G11/2A | G1/2 | 55 | 36 | 22 | 14 | 55 | A | 16 | |
| 9023-24-12 | G11/2A | G3/4 | 55 | 36 | 22 | 16 | 55 | A | 16 | |
| 9023-24-16 | G11/2A | G1 | 55 | 36 | 22 | 18 | 55 | A | 16 | |
| 9023-24-20 | G11/2A | G11/4 | 55 | 32 | 58 | 22 | 26.5 | 55 | B | 16 |
| 9023-32-24 | G2A | G11/2 | 68 | 40 | 62 | 24 | 28.5 | 75 | B | 16 |
