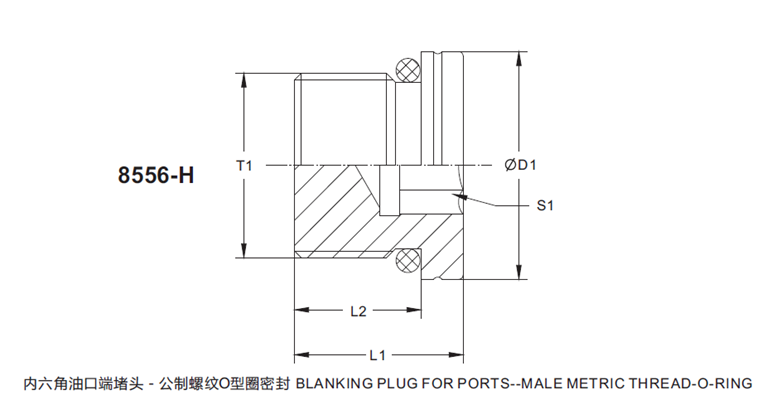

8556-H
型号公制直螺纹尺寸Sizes工作压力Part Nr.Metric Straight ThreadSizes尺寸WkPressureT1D1L1L2S1Mpa8556-H08-OM8x11213.09.54638556-H10-OM10x11413.5
型号公制直螺纹尺寸Sizes工作压力Part Nr.Metric Straight ThreadSizes尺寸WkPressureT1D1L1L2S1Mpa8556-H08-OM8x11213.09.54638556-H10-OM10x11413.5
| 型号 | 公制直螺纹 | 尺寸 | Sizes | 工作压力 | ||
| Part Nr. | Metric Straight Thread | Sizes | 尺寸 | WkPressure | ||
| T1 | D1 | L1 | L2 | S1 | Mpa | |
| 8556-H08-O | M8x1 | 12 | 13.0 | 9.5 | 4 | 63 |
| 8556-H10-O | M10x1 | 14 | 13.5 | 9.5 | 5 | 63 |
| 8556-H12-O | M12x1.5 | 17 | 15.0 | 11.0 | 6 | 63 |
| 8556-H14-O | M14x1.5 | 19 | 16.0 | 11.0 | 6 | 63 |
| 8556-H16-O | M16x1.5 | 21 | 17.5 | 12.5 | 8 | 63 |
| 8556-H18-O | M18x1.5 | 23 | 19.0 | 14.0 | 8 | 63 |
| 8556-H22-O | M22x1.5 | 27 | 20.0 | 15.0 | 10 | 63 |
| 8556-H26-O | M26x1.5 | 31 | 21.0 | 16.0 | 12 | 40 |
| 8556-H27-O | M27x2 | 32 | 23.5 | 18.5 | 12 | 40 |
| 8556-H33-O | M33x2 | 41or 38 | 25.0 | 18.5 | 17 vs 14 | 40 |
| 8556-H42-O | M42x2 | 50 | 25.5 | 19.0 | 22 | 40 |
| 8556-H48-O | M48x2 | 55 | 28.0 | 21.5 | 24 | 31.5 |
| 8556-H60-O | M60x2 | 68 | 25.0 | 17.5 | 32 | 25 |
| 8556-H18-Ox12.5 | M18.x1.5 | 24 | 17.5 | 12.5 | 8 | 40 |
| 8556-H27-Ox16 | M27x2 | 32 | 21.0 | 16.0 | 12 | 31.5 |
| 8556-H33-Ox16 | M33x2 | 41 | 22.5 | 16.0 | 17 | 31.5 |
