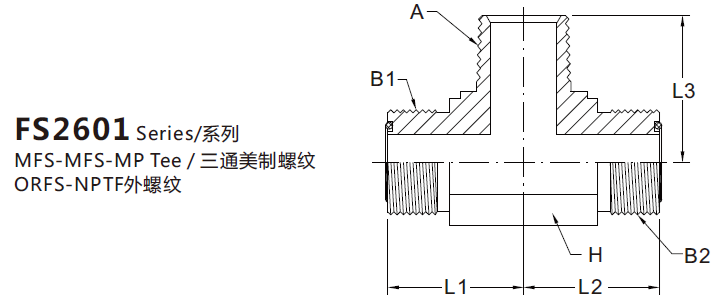

FS2601
注：如果需要产品为公制扳手对边，订单型号中加“MH”，如FS2601-MH-06-06-06。Note: if you need the product as the metric wrench on the Flat Hex, add "
注：如果需要产品为公制扳手对边，订单型号中加“MH”，如FS2601-MH-06-06-06。Note: if you need the product as the metric wrench on the Flat Hex, add "
注：如果需要产品为公制扳手对边，订单型号中加“MH”，如FS2601-MH-06-06-06。
Note: if you need the product as the metric wrench on the Flat Hex, add "MH" for order code, for instance the FS2601-MH-06-06-06.
| 型号 | 管径 | 螺纹 THREAD | 长度 LEN | 对边 HEX | ||||
| PartNr | TubeO.D. | B1 | B2 | A-NPTF | L1 | L2 | L3 | H |
| FS2601-04-04-02 | 1/4 | 9/16-18 | 9/16-18 | 1/8-27 | 0.850 | 0.850 | 0.800 | 9/16 |
| FS2601-04-04-04 | 1/4 | 9/16-18 | 9/16-18 | 1/4-18 | 0.850 | 0.850 | 1.120 | 9/16 |
| FS2601-06-06-04 | 3/8 | 11/16-16 | 11/16-16 | 1/4-18 | 0.980 | 0.980 | 1.090 | 3/4 |
| FS2601-06-06-06 | 3/8 | 11/16-16 | 11/16-16 | 3/8-18 | 0.980 | 0.980 | 1.220 | 3/4 |
| FS2601-08-08-06 | 1/2 | 13/16-16 | 13/16-16 | 3/8-18 | 1.100 | 1.100 | 1.220 | 7/8 |
| FS2601-08-08-08 | 1/2 | 13/16-16 | 13/16-16 | 1/2-14 | 1.100 | 1.100 | 1.470 | 7/8 |
| FS2601-10-10-08 | 5/8 | 1-14 | 1-14 | 1/2-14 | 1.310 | 1.310 | 1.470 | 1-1/16 |
| FS2601-12-12-12 | 3/4 | 1-3/16-12 | 1-3/16-12 | 3/4-14 | 1.470 | 1.470 | 1.590 | 1-3/16 |
| FS2601-16-16-16 | 1 | 1-7/16-12 | 1-7/16-12 | 1-11/1/2 | 1.640 | 1.640 | 1.970 | 1-7/16 |
| FS2601-20-20-20 | 1-1/4 | 1-11/16-12 | 1-11/16-12 | 1-1/4-11-1/2 | 1.760 | 1.760 | 2.380 | 1-5/8 |
