FS2500

注:如果需要产品为公制扳手对边,订单型号中加“MH”,如FS2500-MH-04。Note: if you need the product as the metric wrench on the Flat Hex, add "MH&quo

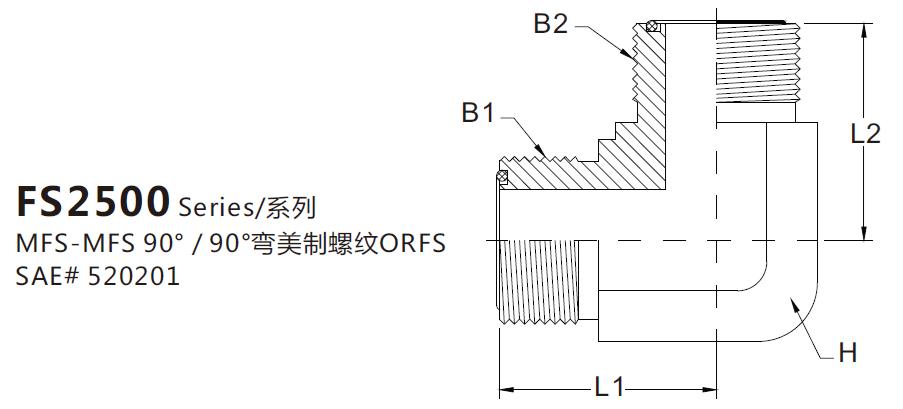

FS2500(图1)

注:如果需要产品为公制扳手对边,订单型号中加“MH”,如FS2500-MH-08-08

Note: if you need the product as the metric wrench on the Flat Hex, add "MH" for order code, for instance the FS2500-MH-08-08.

型号管径螺纹Thrd.螺纹Thrd.长度Len.长度Len.对边Hex
PartNrTubeO.D.B1B2L1L2H
FS2500-04-041/49/16-189/16-180.8500.8509/16
FS2500-06-043/811/16-169/16-160.9800.9203/4
FS2500-06-063/811/16-1611/16-160.9800.9803/4
FS2500-08-081/213/16-1613/16-161.1001.1003/4
FS2500-10-105/81-141-141.3101.3101-1/16
FS2500-12-083/41-3/16-121-3/16-121.4701.3201-3/16
FS2500-12-123/41-3/16-121-3/16-121.4701.4701-3/16
FS2500-16-1211-7/16-121-3/16-121.6401.6201-7/16
FS2500-16-1611-7/16-121-7/16-121.6401.6401-7/16
FS2500-20-161-1/41-11/16-121-7/16-121.7601.7601-5/8
FS2500-20-201-1/41-11/16-121-11/16-121.7601.7601-5/8
FS2500-24-201-1/22-121-11/16-121.9201.9201-7/8
FS2500-24-241-1/22-122-121.9201.9201-7/8
