FS2406

型号管径螺纹Thrd.螺纹Thrd.长度Len.对边HexPartNrTubeO.D.B1B2LHFS2406-06-043/811/16-169/16-18.77013/16FS2406-08-041/213/16-169/16-18.86015/

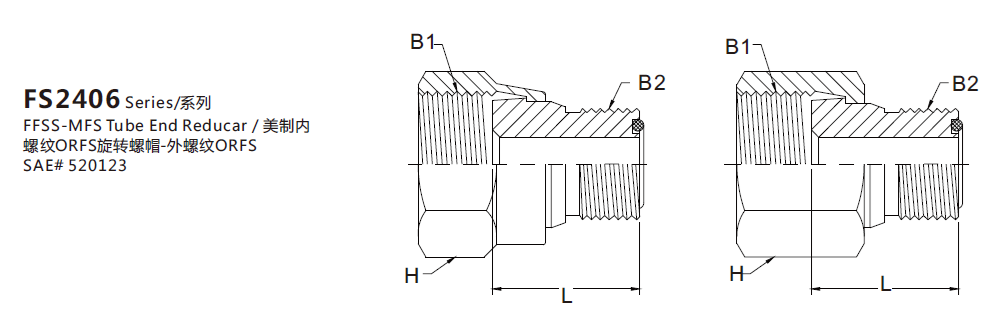

FS2406(图1)

注：如果需要产品为公制扳手对边，订单型号中加“MH”，如FS2406-MH-06-04。

Note: if you need the product as the metric wrench on the edge, add "MH" for order Code, such as the FS2406-MH-06-04.


型号

管径

螺纹Thrd.

螺纹Thrd.

长度Len.

对边Hex

PartNr

TubeO.D.

B1

B2

L

H

FS2406-06-04

3/8

11/16-16

9/16-18

.770

13/16

FS2406-08-04

1/2

13/16-16

9/16-18

.860

15/16

FS2406-08-06

1/2

13/16-16

11/16-16

.880

15/16

FS2406-10-04

5/8

1-14

9/16-18

.900

1-1/8

FS2406-10-06

5/8

1-14

11/16-16

.950

1-1/8

FS2406-10-08

5/8

1-14

13/16-16

1.010

1-1/8

FS2406-12-04

3/4

1-3/16-12

9/16-18

.980

1-3/8

FS2406-12-06

3/4

1-3/16-12

11/16-16

1.030

1-3/8

FS2406-12-08

3/4

1-3/16-12

13/16-16

1.090

1-3/8

FS2406-12-10

3/4

1-3/16-12

1-14

1.160

1-3/8

FS2406-12-16

3/4

1-3/16-12

1-7/16-12

1.240

1-3/8

FS2406-16-06

1

1-7/16-12

11/16-16

1.090

1-5/8

FS2406-16-08

1

1-7/16-12

13/16-16

1.150

1-5/8

FS2406-16-10

1

1-7/16-12

1-14

1.260

1-5/8

FS2406-16-12

1

1-7/16-12

1-3/16-12

1.300

1-5/8

FS2406-16-20

1

1-7/16-12

1-11/16-12

1.330

1-5/8

FS2406-20-08

1-1/4

1-11/16-12

13/16-16

1.500

1-7/8

FS2406-20-12

1-1/4

1-11/16-12

1-3/16-12

1.320

1-7/8

FS2406-20-16

1-1/4

1-11/16-12

1-7/16-12

1.514

1-7/8

FS2406-20-24

1-1/4

1-11/16-12

2-12

1.360

1-7/8

FS2406-24-12

1-1/2

2-12

1-3/16-12

1.320

2-1/4

FS2406-24-16

1-1/2

2-12

1-7/16-12

1.340

2-1/4

FS2406-24-20

1-1/2

2-12

1-11/16-12

1.340

2-1/4
