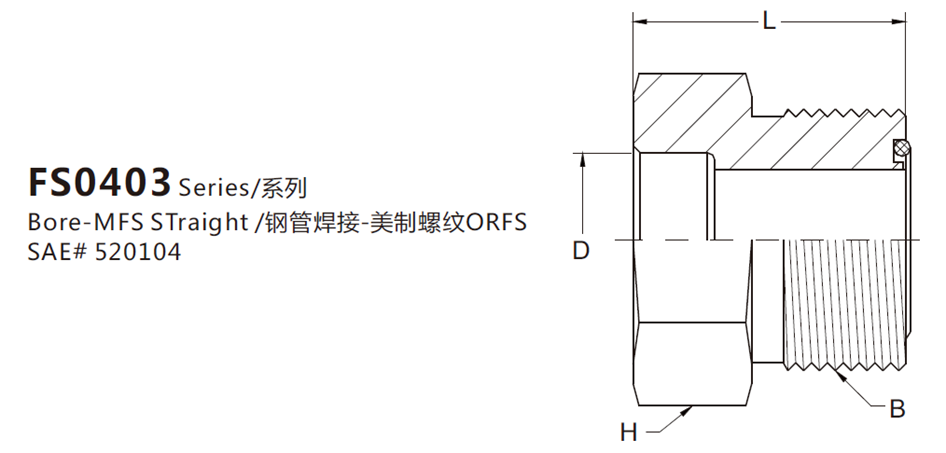

FS0403
型号管径螺纹Thrd.长度Len.直径DIA.对边 HEXPart NumberTube O.D.BLDHFS0403-04-041/49/16-180.860.2565/8FS0403-04-061/411/16-160.900.2563/4FS0
型号管径螺纹Thrd.长度Len.直径DIA.对边 HEXPart NumberTube O.D.BLDHFS0403-04-041/49/16-180.860.2565/8FS0403-04-061/411/16-160.900.2563/4FS0
| 型号 | 管径 | 螺纹Thrd. | 长度Len. | 直径DIA. | 对边 HEX |
| Part Number | Tube O.D. | B | L | D | H |
| FS0403-04-04 | 1/4 | 9/16-18 | 0.860 | .256 | 5/8 |
| FS0403-04-06 | 1/4 | 11/16-16 | 0.900 | .256 | 3/4 |
| FS0403-06-04 | 3/8 | 9/16-18 | 0.860 | .381 | 3/4 |
| FS0403-06-06 | 3/8 | 11/16-16 | 0.900 | .381 | 3/4 |
| FS0403-06-08 | 3/8 | 13/16-16 | 0.970 | .381 | 7/8 |
| FS0403-08-06 | 1/2 | 11/16-16 | 0.900 | .506 | 7/8 |
| FS0403-08-08 | 1/2 | 13/16-16 | 0.970 | .506 | 7/8 |
| FS0403-08-10 | 1/2 | 1-14 | 1.070 | .506 | 1-1/16 |
| FS0403-08-12 | 1/2 | 1-3/16-12 | 1.160 | .506 | 1-1/4 |
| FS0403-10-08 | 5/8 | 13/16-16 | .970 | .631 | 7/8 |
| FS0403-10-10 | 5/8 | 1-14 | 1.070 | .631 | 1-1/4 |
| FS0403-10-12 | 5/8 | 1-3/16-12 | 1.160 | .631 | 1-1/4 |
| FS0403-12-08 | 3/4 | 13/16-16 | 1.130 | .757 | 1-1/4 |
| FS0403-12-10 | 3/4 | 1-14 | 1.230 | .757 | 1-1/4 |
| FS0403-12-12 | 3/4 | 1-3/16-12 | 1.320 | .757 | 1-1/4 |
| FS0403-12-16 | 3/4 | 1-7/16-12 | 1.460 | .757 | 1-1/2 |
| FS0403-16-12 | 1 | 1-3/16-12 | 1.380 | 1.007 | 1-1/2 |
| FS0403-16-16 | 1 | 1-7/16-12 | 1.520 | 1.007 | 1-1/2 |
| FS0403-16-20 | 1 | 1-11/16-12 | 1.520 | 1.007 | 1-3/4 |
| FS0403-20-16 | 1-1/4 | 1-7/16-12 | 1.520 | 1.258 | 1-3/4 |
| FS0403-20-20 | 1-1/4 | 1-11/16-12 | 1.520 | 1.258 | 1-3/4 |
| FS0403-20-24 | 1-1/4 | 2-12 | 1.520 | 1.258 | 2-1/8 |
| FS0403-24-20 | 1-1/2 | 1-11/16-12 | 1.520 | 1.508 | 2-1/8 |
| FS0403-24-24 | 1-1/2 | 2-12 | 1.52 | 1.508 | 2-1/8 |
