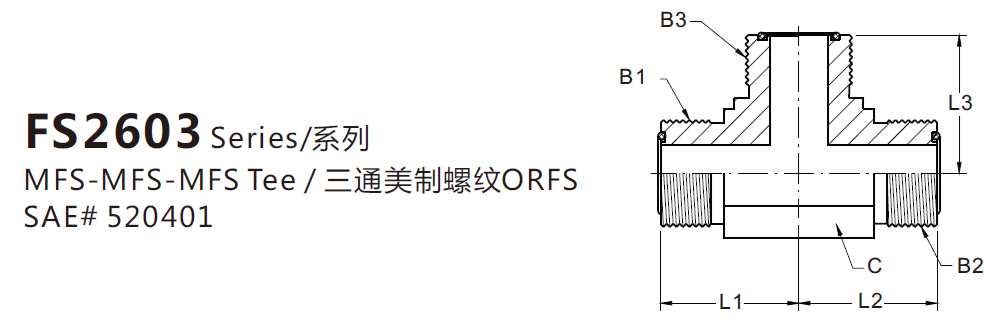

FS2603
FS2603-04-04-041/49/16-189/16-189/16-18.850.850.8509/16FS2603-06-06-063/811/16-1611/16-1611/16-16.980.980.9803/4FS2603-06-06-
FS2603-04-04-041/49/16-189/16-189/16-18.850.850.8509/16FS2603-06-06-063/811/16-1611/16-1611/16-16.980.980.9803/4FS2603-06-06-
| 型号 | 管径 | 螺纹 THREAD | 长度 | 对边HEX | ||||
| PART NO. | TUBE.OD. | B1 | B2 | B3 | L1 | L2 | L3 | H |
| FS2603-04-04-04 | 1/4 | 9/16-18 | 9/16-18 | 9/16-18 | .850 | .850 | .850 | 9/16 |
| FS2603-06-06-06 | 3/8 | 11/16-16 | 11/16-16 | 11/16-16 | .980 | .980 | .980 | 3/4 |
| FS2603-06-06-08 | 3/8 | 11/16-16 | 11/16-16 | 13/16-16 | 1.040 | 1.040 | 1.100 | 3/4 |
| FS2603-08-08-08 | 1/2 | 13/16-16 | 13/16-16 | 13/16-16 | 1.100 | 1.100 | 1.100 | 3/4 |
| FS2603-08-08-10 | 1/2 | 13/16-16 | 13/16-16 | 1/14 | 1.230 | 1.230 | 1.310 | 1-1/16 |
| FS2603-10-10-06 | 5/8 | 1-14 | 1-14 | 11/16-16 | 1.310 | 1.310 | 1.170 | 1-1/16 |
| FS2603-10-10-10 | 5/8 | 1-14 | 1-14 | 1-14 | 1.310 | 1.310 | 1.310 | 1-1/16 |
| FS2603-12-12-12 | 3/4 | 1-3/16-12 | 1-3/16-12 | 1-3/16-12 | 1.470 | 1.470 | 1.470 | 1-3/16 |
| FS2603-12-12-16 | 3/4 | 1-3/16-12 | 1-3/16-12 | 1-7/16-12 | 1.620 | 1.620 | 1.640 | 1-3/16 |
| FS2603-16-16-12 | 1 | 1-7/16-12 | 1-7/16-12 | 1-3/16-12 | 1.640 | 1.640 | 1.620 | 1-7/16 |
| FS2603-16-16-16 | 1 | 1-7/16-12 | 1-7/16-12 | 1-7/16-12 | 1.640 | 1.640 | 1.640 | 1-7/16 |
| FS2603-20-20-20 | 1-1/4 | 1-11/16-12 | 1-11/16-12 | 1-11/16-12 | 1.760 | 1.760 | 1.760 | 1-5/8 |
| FS2603-24-24-24 | 1-1/2 | 2-12 | 2-12 | 2-12 | 1.920 | 1.920 | 1.920 | 1-7/8 |
