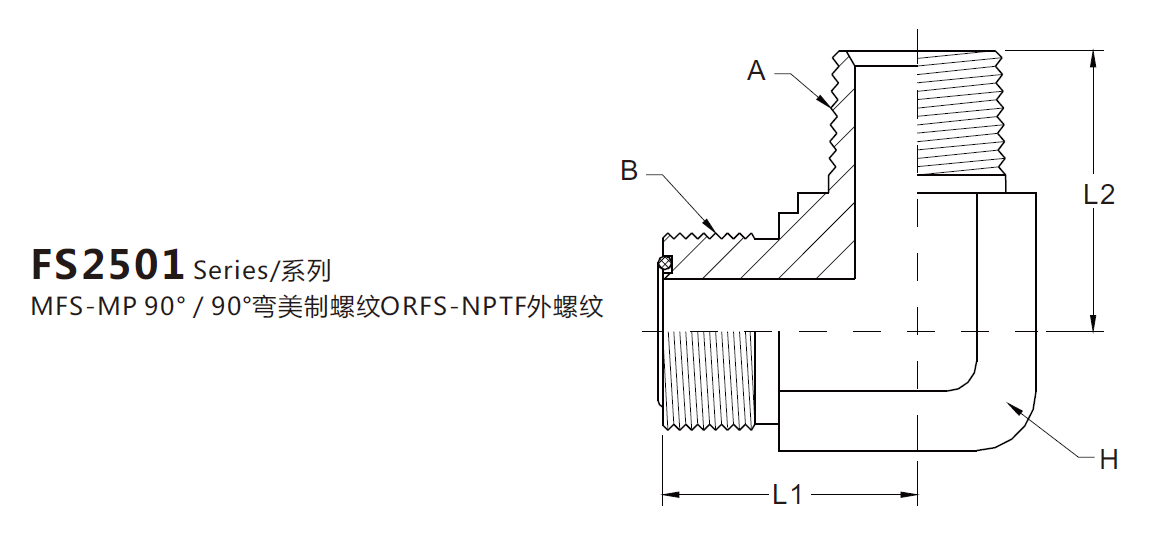

FS2501
型号管径螺纹 THREAD长度 LEN.对边HEXPART NO.TUBE.OD.B1A NPTFL1L2HFS2501-04-041/49/16-181/4-18.8501.1209/16FS2501-04-061/49/
型号管径螺纹 THREAD长度 LEN.对边HEXPART NO.TUBE.OD.B1A NPTFL1L2HFS2501-04-041/49/16-181/4-18.8501.1209/16FS2501-04-061/49/
| 型号 | 管径 | 螺纹 THREAD | 长度 LEN. | 对边HEX | ||
| PART NO. | TUBE.OD. | B1 | A NPTF | L1 | L2 | H |
| FS2501-04-04 | 1/4 | 9/16-18 | 1/4-18 | .850 | 1.120 | 9/16 |
| FS2501-04-06 | 1/4 | 9/16-18 | 3/8-18 | .920 | 1.220 | 3/4 |
| FS2501-06-04 | 3/8 | 11/16-16 | 1/4-18 | .980 | 1.090 | 3/4 |
| FS2501-06-06 | 3/8 | 11/16-16 | 3/8-18 | .980 | 1.220 | 3/4 |
| FS2501-06-08 | 3/8 | 11/16-16 | 1/2-14 | 1.150 | 1.470 | 7/8 |
| FS2501-08-06 | 1/2 | 13/16-16 | 3/8-18 | 1.100 | 1.220 | 3/4 |
| FS2501-08-08 | 1/2 | 13/16-16 | 1/2-14 | 1.100 | 1.470 | 7/8 |
| FS2501-08-12 | 1/2 | 13/16-16 | 3/4-14 | 1.320 | 1.590 | 1-1/16 |
| FS2501-10-08 | 5/8 | 1-14 | 1/2-14 | 1.310 | 1.470 | 1-1/16 |
| FS2501-10-12 | 5/8 | 1-14 | 3/4-14 | 1.310 | 1.590 | 1-1/16 |
| FS2501-12-08 | 3/4 | 1-3/16-12 | 1/2-14 | 1.470 | 1.590 | 1-3/16 |
| FS2501-12-12 | 3/4 | 1-3/16-12 | 3/4-14 | 1.470 | 1.590 | 1-3/16 |
| FS2501-12-16 | 3/4 | 1-3/16-12 | 1-11-1/2 | 1.620 | 1.970 | 1-5/16 |
| FS2501-16-12 | 1 | 1-7/16-12 | 3/4-14 | 1.640 | 1.780 | 1-7/16 |
| FS2501-16-16 | 1 | 1-7/16-12 | 1-11-1/2 | 1.640 | 1.970 | 1-7/16 |
| FS2501-16-20 | 1 | 1-7/16-12 | 1-1/4-11-1/2 | 1.760 | 2.380 | 1-5/8 |
| FS2501-20-16 | 1-1/4 | 1-11/16-12 | 1-11-1/2 | 1.760 | 2.350 | 1-5/8 |
| FS2501-20-20 | 1-1/4 | 1-11/16-12 | 1-1/4-11-1/2 | 1.760 | 2.380 | 1-5/8 |
| FS2501-24-24 | 1-1/2 | 2-12 | 1-1/2-11-1/2 | 1.920 | 2.640 | 1-7/8 |
