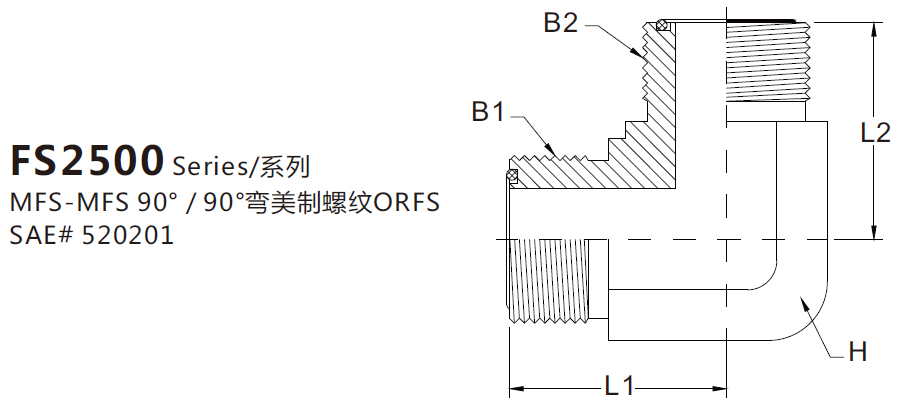

FS2500
型号管径螺纹 THREAD长度 LEN.对边HEXPART NO.TUBE.OD.B1B2L1L2HFS2500-04-041/49/16-189/16-180.8500.8509/16FS2500-06-043/811/16-169/16-160.
型号管径螺纹 THREAD长度 LEN.对边HEXPART NO.TUBE.OD.B1B2L1L2HFS2500-04-041/49/16-189/16-180.8500.8509/16FS2500-06-043/811/16-169/16-160.
| 型号 | 管径 | 螺纹 THREAD | 长度 LEN. | 对边HEX | ||
| PART NO. | TUBE.OD. | B1 | B2 | L1 | L2 | H |
| FS2500-04-04 | 1/4 | 9/16-18 | 9/16-18 | 0.850 | 0.850 | 9/16 |
| FS2500-06-04 | 3/8 | 11/16-16 | 9/16-16 | 0.980 | 0.920 | 3/4 |
| FS2500-06-06 | 3/8 | 11/16-16 | 11/16-16 | 0.980 | 0.980 | 3/4 |
| FS2500-08-08 | 1/2 | 13/16-16 | 13/16-16 | 1.100 | 1.100 | 3/4 |
| FS2500-10-10 | 5/8 | 1-14 | 1-14 | 1.310 | 1.310 | 1-1/16 |
| FS2500-12-08 | 3/4 | 1-3/16-12 | 1-3/16-12 | 1.470 | 1.320 | 1-3/16 |
| FS2500-12-12 | 3/4 | 1-3/16-12 | 1-3/16-12 | 1.470 | 1.470 | 1-3/16 |
| FS2500-16-12 | 1 | 1-7/16-12 | 1-3/16-12 | 1.640 | 1.620 | 1-7/16 |
| FS2500-16-16 | 1 | 1-7/16-12 | 1-7/16-12 | 1.640 | 1.640 | 1-7/16 |
| FS2500-20-16 | 1-1/4 | 1-11/16-12 | 1-7/16-12 | 1.760 | 1.760 | 1-5/8 |
| FS2500-20-20 | 1-1/4 | 1-11/16-12 | 1-11/16-12 | 1.760 | 1.760 | 1-5/8 |
| FS2500-24-20 | 1-1/2 | 2-12 | 1-11/16-12 | 1.920 | 1.920 | 1-7/8 |
| FS2500-24-24 | 1-1/2 | 2-12 | 2-12 | 1.920 | 1.920 | 1-7/8 |
